How do you install a benchtop vise?
0:009:11How to Mount a Workbench Vise - YouTubeYouTubeStart of suggested clipEnd of suggested clipThe in vice on the bench top by first removing the nuts. That hold the end assembly to the guideMoreThe in vice on the bench top by first removing the nuts. That hold the end assembly to the guide rods. Go ahead and slip that out. And set it aside. And now I'm going to slide the guide rod assembly.
How do you secure a vise without drilling?
The DesignStep One: Begin by making a plate to mount the vise. ... Step Two: Cut two matching layers of plywood to the same size.Step Three: Cover one side of each piece with glue, then sandwich them together and clamp to allow the glue to dry.More items...
How do you mount a woodworking bench vise?
0:544:38How to install a Woodworking Vise// Woodworking// Quick Release ViseYouTubeStart of suggested clipEnd of suggested clipAs this will be very important later. Now you can use clamps to put the vise plate back in place useMoreAs this will be very important later. Now you can use clamps to put the vise plate back in place use a pencil to find the center of the holes. And then use a center punch to go ahead and mark them.
How do you attach a vice?
0:281:57How To Properly Mount A Vice To Any Surface.. - YouTubeYouTubeStart of suggested clipEnd of suggested clipIt's going to go right on top I already pre-drilled the holes. Bolts washer it's going to go rightMoreIt's going to go right on top I already pre-drilled the holes. Bolts washer it's going to go right through. Now. I'm going to drill holes on here to match here. And then what I'm going to do is once I
What do you attach vise to?
0:5211:36How to Install a Bench Vise - YouTubeYouTubeStart of suggested clipEnd of suggested clipYour your vise here you want it as closest to the edge as possible. And the reason for that is thisMoreYour your vise here you want it as closest to the edge as possible. And the reason for that is this back jaw right here this back sha has to be in front of your workbench.
What size bolts to mount a vise?
Re: Mounting a Bench Vise Mine used 7/16 bolts to mount. Make sure to hang the jaws over the edge of the table, just as ware did. 7/16 seems to be right.
Where should a vice be placed on a workbench?
Bench vises hold better when you push toward them, with the mass of the bench behind the workpiece. That's why face vises usually are placed on the left end of the bench.
How do you hang a vise without a bench?
1:406:17Mounting a vise without taking up bench space. - YouTubeYouTubeStart of suggested clipEnd of suggested clipBoard some holes in it put some bolts in it. The clever part is right here i got some of theseMoreBoard some holes in it put some bolts in it. The clever part is right here i got some of these threaded inserts i try to keep these little guys on hand they're really useful.
What clamping position should be considered when mounting a vise on a workbench?
What clamping position should be considered when mounting a vise on a workbench? The vise should be positioned so that a long piece can be held vertically in the jaws without interference from the workbench.
How do you attach a bench vise to a toolbox?
1:113:26How to mount a bench vise to a Husky tool box - YouTubeYouTubeStart of suggested clipEnd of suggested clipWhat I did is I just hello marker marked down so now I'm gonna drill a couple holes three holes toMoreWhat I did is I just hello marker marked down so now I'm gonna drill a couple holes three holes to be exact. And I'm gonna go all the way through the wood to the top toolbox.
What is a vise clamp?
Vises function similarly to clamps, but they usually have larger contact areas. A vise features two sides, or jaws, one of which is fixed and one of which travels along a guide rod or bar.
How do you clamp without a vise?
1:092:42Two Ways to Hold Wood Without a Vise - YouTubeYouTubeStart of suggested clipEnd of suggested clipWatch this take a piece of wood drill a hole the diameter of your pipe clamp. Take another piece ofMoreWatch this take a piece of wood drill a hole the diameter of your pipe clamp. Take another piece of wood and drill a hole the diameter of your pipe clamp screw this on to your table.
How do you hang a vise without a bench?
1:406:17Mounting a vise without taking up bench space. - YouTubeYouTubeStart of suggested clipEnd of suggested clipBoard some holes in it put some bolts in it. The clever part is right here i got some of theseMoreBoard some holes in it put some bolts in it. The clever part is right here i got some of these threaded inserts i try to keep these little guys on hand they're really useful.
Where is the best place to put a vise on a workbench?
Bench vises hold better when you push toward them, with the mass of the bench behind the workpiece. That's why face vises usually are placed on the left end of the bench.
How do you fix a vice to a workbench?
0:252:11How to Fix a Vice on a Workbench | Woodworking - YouTubeYouTubeStart of suggested clipEnd of suggested clipMake sure the handle is jutting out that you can loosen and tighten the vise easily mark the spotMoreMake sure the handle is jutting out that you can loosen and tighten the vise easily mark the spot where you will drill a hole using a pencil. Use a center punch to make the pilot holes.
What other tools can you mount next to a bench vise?
A bench grinder is a great tool to have next to your bench vise. With a capable motor and two grinding wheels, having it near your bench vise allows you to easily and constantly keep your tools sharp. If you are doing metalwork, a bench grinder allows you to smooth out and polish workpieces.
How to mount a pipe clamp bench vise?
If you want to DIY a custom-fit pipe clamp bench vise. Though you can purchase ready-made ones if you prefer. Here’s how to install a bench vise pipe clamp:
What makes the ideal workshop table with a bench vise?
Ideally, you have a strong steel bench for mounting a bench vise, with a plywood replaceable top to cushion the rigid steel and prevent damage or rust marks on your projects.
Why do vises have lined jaws?
As the most common of vise types, these typically have either wood or lined jaws to help prevent damaging the workpiece you clamp from the clamping jaws.
What is a vise tool?
Being made out of two parallel jaws, an adjustment screw, and a base; a vise is a tool that’s simple to both operate and maintain.
What is metal vise?
Metalworking vises are mainly used to clamp down metal but are also more viable than woodworking vises when needing to secure large and heavy materials.
What is a good alternative to a bearing puller?
A vise can be a good alternative to a bearing puller for removing armature bearings. The piece is clamped securely to a vice while the bearing is pried off with a screwdriver.
Where is the vise on a bench?
A vise’s location on the bench determines what it’s called. Face vises are attached on the front, or face, of the bench; end vises are installed on the end. The best benches have both, but if you can only afford one, I’d go for a face vise initially.
Where should a right-hander mount a vise?
Right-handers should mount a face vise at the far left of the bench’s front edge and an end vise on the end of the bench at the foremost right-hand corner. Southpaws will want to do the opposite. When retrofitting an existing bench, make sure the vise mechanism won’t interfere with the bench legs. Shift the top if necessary to accommodate the vise.
How big of a vise should I use for face planing?
Because a face vise is used for general work as well as for planing edges, I recommend investing in a larger vise (at least 10"). Since it’s primarily used in tandem with bench dogs to secure boards for face-planing, a smaller end vise should suffice.
How to attach a vise to a spacer block?
Use a straightedge to ensure the face of the jaw is flush with the edge of the ben ch. If it’s proud, level it with a hand plane.
How to measure spacer block thickness?
To determine the thickness of your spacer blocks, place the rear jaw upside down on the inverted benchtop and measure how much the top of the jaw projects beyond the underside. Add to that 1⁄4" for a 7" vise, or 1⁄2" for a 10" vise. (The former is necessary for better dog height on the smaller vise.)
How to make a cheek on a bench?
Make the front cheek, and attach it with washers and roundhead woodscrews, reassemble the vise, and turn the benchtop over. Hand-plane the cheeks flush with the benchtop (Photo H). My bench had radiused edges, so I chiseled away the sharp point at the corner of the cheek. Finally, apply a couple of coats of wipe-on finish to all raw wood surfaces.
How big is a face vise?
Because a face vise is used for general work as well as for planing edges, I recommend investing in a larger vise (at least 10"). Since it’s primarily used in tandem with bench dogs to secure boards for face-planing, a smaller end vise should suffice. I prefer a small (7") model, because its dog is only 31⁄2" from the front edge of the bench, which is convenient for clamping workpieces for face-planing and other operations.
Where should a bench vise be mounted?
As a note, if you are right handed, you will probably prefer your bench vise to be mounted on the right corner of your bench. For left handed people, you would likely have an easier time using the left corner.
How long does it take to mount a bench vise?
These are all of the steps to mounting a bench vise. It will probably only take between 10 and 15 minutes to complete, so let’s get started.
How to make a vise mount?
Step 1. First, measure where you need to place the mounting holes and mark them with your pencil. You can do this by placing the vise where you want to mount it, then marking where the holes are. If your vise comes with a mounting template, you can use this instead to determine where the holes will be. It is a good idea to make sure it lines up ...
Can you use a bench vise anywhere?
If you are interested, there are also ways to use your bench vise wherever you need to. You would follow the same steps as above, with a few modifications. Instead of attaching the vise to your worktable, you would attach it to a solid base.
Can you do all sorts of projects with a bench vise?
Once you have the vise mounted properly , you will be able to do all sorts of projects with it. You will wonder how you used to get by without one on hand. Be sure to reach out to us if you have any questions about getting your bench vise mounted.
Can you attach a vise to a bench?
Keep in mind that it is best to attach the vise to your bench if you are going to be doing heavy-duty work. It will be kept much more secure when installed properly. Thanks to Instructables for this great advice.

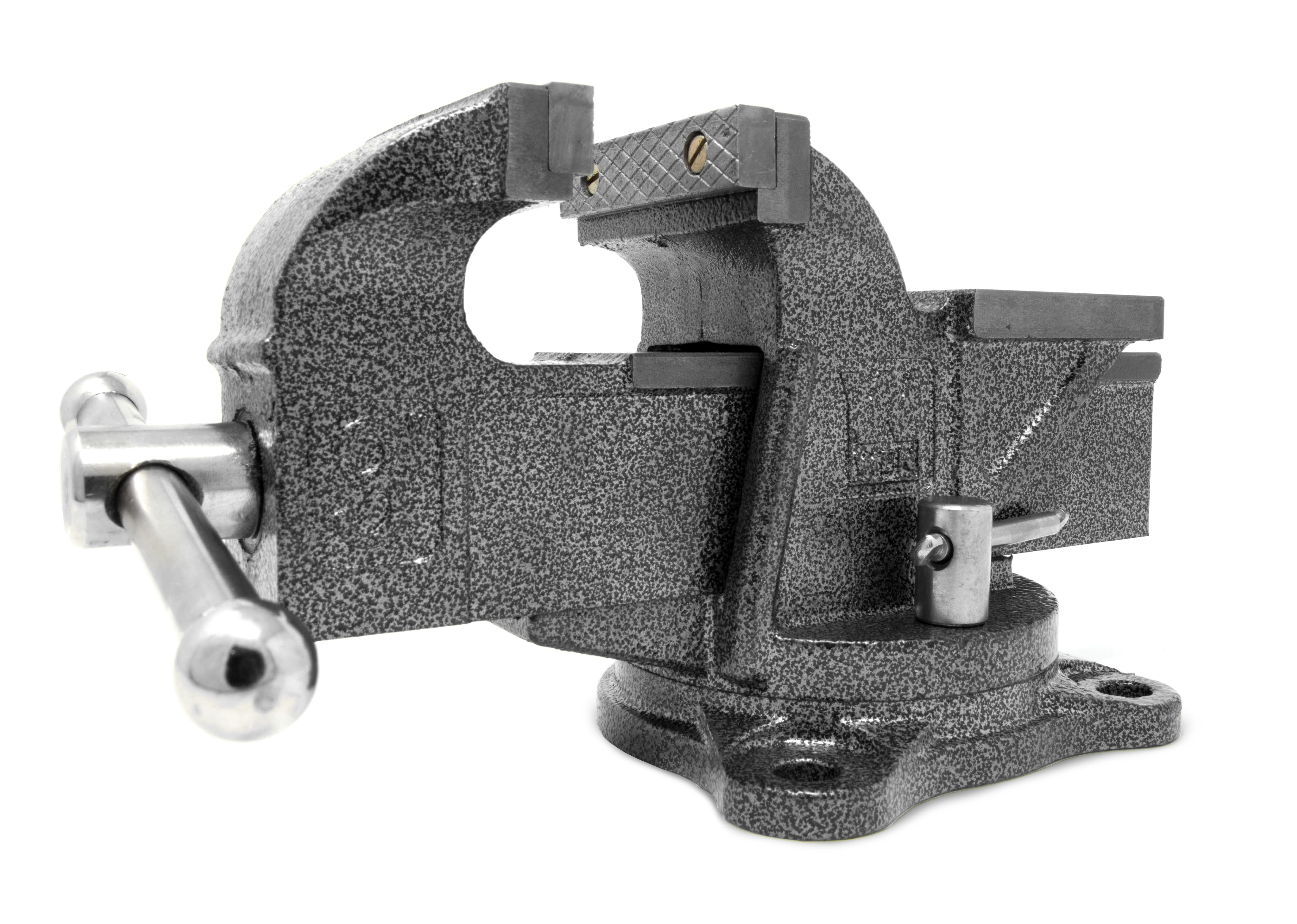

What is a bench vise?
Drilling is a standard operation that you will find in plumbing, carpentry, electrical fittings, and interior decors job site. Steadiness and care are inevitable in a drilling operation. A bench vise can hold the drill to an accurate position, and the drill can perform to create a hole proficiently. A bench vise spreads its hand to give you an impressive drilling experience. You can’t avoid using a bench vise in drilling types of applications.
What is the purpose of a bench vise?
The primary purpose of a bench vise is to hold an object securely.
Why use a bench vise for carpentry?
Except for the gravitational force, extra pressure is needed to keep the pieces together until they are dry. For this reason, using a bench vise will be the best choice in holding the wood-pieces together. Also, it makes the adhesive quick dry or sticking with the material. Except for carpentry work, if any other job site needs similar work, a bench vise is always ready to provide you a comfortable operation.
Where to place washer and lock washer on bench vise?
Step 05: You need to position the washer and lock washer at the underneath hole of the bench vise. Give the nut a hand tightening. Follow the same process for every bolt.
Do you need a bench vise for metal cutting?
In the metal works, a bench vise is mostly required while the metal cutting operation is going on. If you want to perform a perfect cut at the top and bottom part of metal, the opposite end needs to be held tightly. In this type of operation, a bench vise aids the best.
Do you have to use a bench vise for sanding?
That is, related elements, such as a door or a grill, should be fixed appropriately in the workplace. In this regard, you have to use a bench vise. Also, your hands will remain safe as you are not using your hands to do the sanding.
Is it hard to mount a bench vise?
Mounting a bench vise is not a challenging task, but doing it properly is quite tricky. Also, a properly mounted bench vise will give you the best efficiency undoubtedly.
How long does it take to attach a bench dog to a bench?
This might be useful in the future if I'm cutting something quite long and need the side-to-side clearance and support in the middle. This took about 6 seconds.
Can you reinforce dado joints?
Allow the glue to cure. You could reinforce this dado joint with screws or dowels if you want, but with this much contact and the dimensional strength of the plywood, I think it'll stand up to any force I can apply with my hands. Also, at this point, I wiped on a coat of Danish Oil.
How-To: Take Apart, Lube, & Mount A Bench Vise
I recently built a new workbench and there was no way I was going to mount my little Craftsman vise on this bench. I decided I needed something a little bit bigger, and definitely higher quality.
Price
In the thread I mentioned above, many stated that the going rate for used vises is usually around $1/lb. I found that the going rate is about $2/lb where I live (Chicago burbs). Also, sellers are asking a premium for Wiltons. I ended up paying $75 for this Morgan 135 after searching C-List for some time. It also came down to timing for me.
Taking it apart
Taking the vise apart is pretty simple. Start by unscrewing the dynamic jaw all the way until it comes out. Next, remove the bolts that hold the swivel base together.
Mounting
I decided to mount this vise in the corner of my new workbench. Make sure the static jaw overhangs the bench slightly, so you can clamp long objects without interfering with bench top. Swivel the vise 90° and check if there is any interference with the work surface. As far as hardware, I used both ½” bolts/nuts and lag screws.
Lube
I bought 2 products from Amazon to lube the lead screw and machined surfaces. Use Permatex 80078 anti-seize on the lead screw. A little goes a long way, so use sparingly. This will make the vise operate with one finger! Next, rub some Johnson paste wax on all machined/sliding surfaces to protect from corrosion and add a bit of lubrication.
Used or New
I personally like to find good used items to save money if possible. In some cases it’s not worth the time or money dealing with used items, or they simply are not available in the area that you live. If this is the case, consider buying a new vise on Amazon. Every garage needs a good vise!
