Simple Steps on How to Mount a Wood Vise
- First, You Need to Select Which Side of the Workbench You Will Mount the Work Vise. ...
- Set Up the Wood Vise. Position the wood vise on the place where you want to bolt it. ...
- Measure Accurately. Mark out the point where you will make holes for bolting. ...
- Drill the Holes. ...
- Start Bolting. ...
- Install the Wood Vise. ...
Full Answer
How to install a woodworking vise?
How to Install a Woodworking Vise. 1 Step 1: Measure for Your Jaw (s) Clamp the vise and plate where you want the vise to be installed. Get a rough measurement of the vise jaw while the ... 2 Step 2: Cut Out the Rough Sized Jaw (s) 3 Step 3: Remove the Vise From the Clamps. 4 Step 4: Remove Back Plate. 5 Step 5: Remove Quick Release Nut. More items
How do you mount a vise plate on a bench?
Pre drill all the marked locations and mount the plate with the proper sized screws for your vise. Place the jaw in posistion to be mounted, making sure to leave the top edge proud of the top of the bench. Use a pencil to mark the center of the holes in the vise mounting plate where the rods and screw will go through the front jaw.
How do you attach rods and screws to a vise?
Use a pencil to mark the center of the holes in the vise mounting plate where the rods and screw will go through the front jaw. Drill the holes out slightly larger than what is required to fit the rods and screw so that there is some play to account for any minor error in your markings.
How do you use a quick release vise?
If you are using a quick release vise, place the main screw and rods barely in the holes on the vise mounting plate (just enough to hold them in place. Reinstall the quick release nut ( in its proper orientation ) and screw the vise in. Reinstall the back plate onto the main screw and rods.
How do you mount wood vise?
3:346:41Installing a Woodworking Vise - YouTubeYouTubeStart of suggested clipEnd of suggested clipI clamped the vise back in place and used an impact driver with a socket to drive the lag screws. InMoreI clamped the vise back in place and used an impact driver with a socket to drive the lag screws. In. The vise also gets secured on the front face through the jaw.
Where do you mount wood working vises?
1:184:38How to install a Woodworking Vise// Woodworking// Quick Release ViseYouTubeStart of suggested clipEnd of suggested clipAll the holes for the mounting of the vise plate to the bottom side of the bench.MoreAll the holes for the mounting of the vise plate to the bottom side of the bench.
How do you mount a table vise?
0:075:05BENCH VISE - How To Install A Vise - YouTubeYouTubeStart of suggested clipEnd of suggested clipSide is close enough to an at the edge. Where if you have a long item that you're working on thatMoreSide is close enough to an at the edge. Where if you have a long item that you're working on that you need to clamp that it will clear. The side of the bench.
How do you fit a vise to a workbench?
1:0910:36Mounting a Workbench Vise - YouTubeYouTubeStart of suggested clipEnd of suggested clipThe end vise on the bench top by first removing the nuts that hold the end assembly to the guideMoreThe end vise on the bench top by first removing the nuts that hold the end assembly to the guide rods. Go ahead and slip that out. And set it aside.
How do you hang a vise without a bench?
2:096:17Mounting a vise without taking up bench space. - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo you just go to the spot that it's at. And the holes are just a little bit loose so that they don'MoreSo you just go to the spot that it's at. And the holes are just a little bit loose so that they don't bind up.
Where should you position a workbench vise?
0:5211:36How to Install a Bench Vise - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo I personally like it in the corner of your other workbench whenever possible and as close as youMoreSo I personally like it in the corner of your other workbench whenever possible and as close as you can get it to the edge on both sides here and equal.
Where do you mount a vise grip?
0:001:57How To Properly Mount A Vice To Any Surface.. - YouTubeYouTubeStart of suggested clipEnd of suggested clipI'm gonna put it right up underneath you see it right up underneath just to give some more supportMoreI'm gonna put it right up underneath you see it right up underneath just to give some more support to almost sandwich these two pieces of wood.
How does a wood vise work?
A wood face vise consists of a movable front jaw that is mounted to a broad, square beam that slides in and out of a matching channel. While the beam keeps the jaw steady and properly aligned, the jaw is driven by a wooden bench screw. The whole mechanism is fastened to the benchtop from below.
What is a wood vice used for?
A woodwork vice can be used for either light or heavy-duty work as it can hold both large or small pieces of wood. Due to its clamping capabilities, it is often used by professional woodworkers and in manufacturing industries for the production of wood products, such as plywood, veneers, containers, flooring, etc.
What clamping position should be considered when mounting a vise on a workbench?
What clamping position should be considered when mounting a vise on a workbench? The vise should be positioned so that a long piece can be held vertically in the jaws without interference from the workbench.
What clamping position should be considered when mounting a vise on a workbench?
What clamping position should be considered when mounting a vise on a workbench? The vise should be positioned so that a long piece can be held vertically in the jaws without interference from the workbench.
What is a Woodworkers vise used for?
The primary purpose of a machinist's vise is to grab hold of things and to hold them steady in its rough jaws, freeing up both your hands so that you can bend, shape, hammer, cut, drill, or perform any number of other operations. The jaws of the vise usually have a machined face that can easily scar wood.
Can you take a vise off?
Now that you have your measurement and the jaw (s) cut, you can take the vise off.
Can you add an outer jaw to a vise?
So on my vise i chose to only add an outer jaw, and use the edge of the benchtop for my inner jaw but you can do this a couple different ways so do what works best for you! Cut the oversized jaw to length and width, but dont forget to leave a little extra so you can dial it in later.
Can you remove the quick release nut?
Remove quick release nut, but REMEMBER how it goes, i suggest taking a picture of it's oreintation so that you make sure it goes back correctly, if not the vise will not operate as intended.
How big of a vise should I use for face planing?
Because a face vise is used for general work as well as for planing edges, I recommend investing in a larger vise (at least 10"). Since it’s primarily used in tandem with bench dogs to secure boards for face-planing, a smaller end vise should suffice.
How to attach a vise to a spacer block?
Use a straightedge to ensure the face of the jaw is flush with the edge of the ben ch. If it’s proud, level it with a hand plane.
How to measure spacer block thickness?
To determine the thickness of your spacer blocks, place the rear jaw upside down on the inverted benchtop and measure how much the top of the jaw projects beyond the underside. Add to that 1⁄4" for a 7" vise, or 1⁄2" for a 10" vise. (The former is necessary for better dog height on the smaller vise.)
How to make a cheek on a bench?
Make the front cheek, and attach it with washers and roundhead woodscrews, reassemble the vise, and turn the benchtop over. Hand-plane the cheeks flush with the benchtop (Photo H). My bench had radiused edges, so I chiseled away the sharp point at the corner of the cheek. Finally, apply a couple of coats of wipe-on finish to all raw wood surfaces.
How big is a face vise?
Because a face vise is used for general work as well as for planing edges, I recommend investing in a larger vise (at least 10"). Since it’s primarily used in tandem with bench dogs to secure boards for face-planing, a smaller end vise should suffice. I prefer a small (7") model, because its dog is only 31⁄2" from the front edge of the bench, which is convenient for clamping workpieces for face-planing and other operations.
How to cut a notch in a bench?
Make the crosscut into the benchtop edge with a backsaw. Then clamp a straightedge to the bench to guide a circular saw to cut the length of the notch. Rip the notch until you intersect the previous crosscut (Photo C), and then finish up with a handsaw.
What is a workbench without vises?
Let’s face it; a workbench without vises is basically just an assembly table. Vises provide the muscle for securing workpieces for planing, sawing, routing, and other tooling operations. Of the myriad commercial models, the venerable Record vise is one that has stood the test of time, because it’s simple to install, easy to operate, and designed to survive generations of use. Although it’s no longer in production, several clones are available, including the Eclipse vise, which I show in this article. Similar vises may differ in features, but attachment is similar.
Crosscut Sled for Large Panels
Steve Fikar's panel sled is guided by a single runner in one miter slot attached to a torsion-box base to keep the sled light.
Shop Talk Live Podcast
Our biweekly podcast allows editors, authors, and special guests to answer your woodworking questions and connect with the online woodworking community.

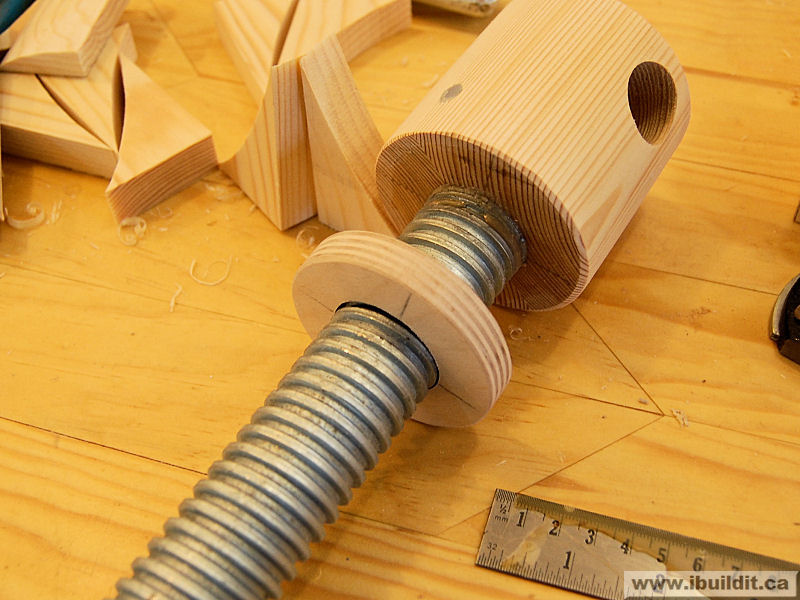

How to fix a rod on a nut?
