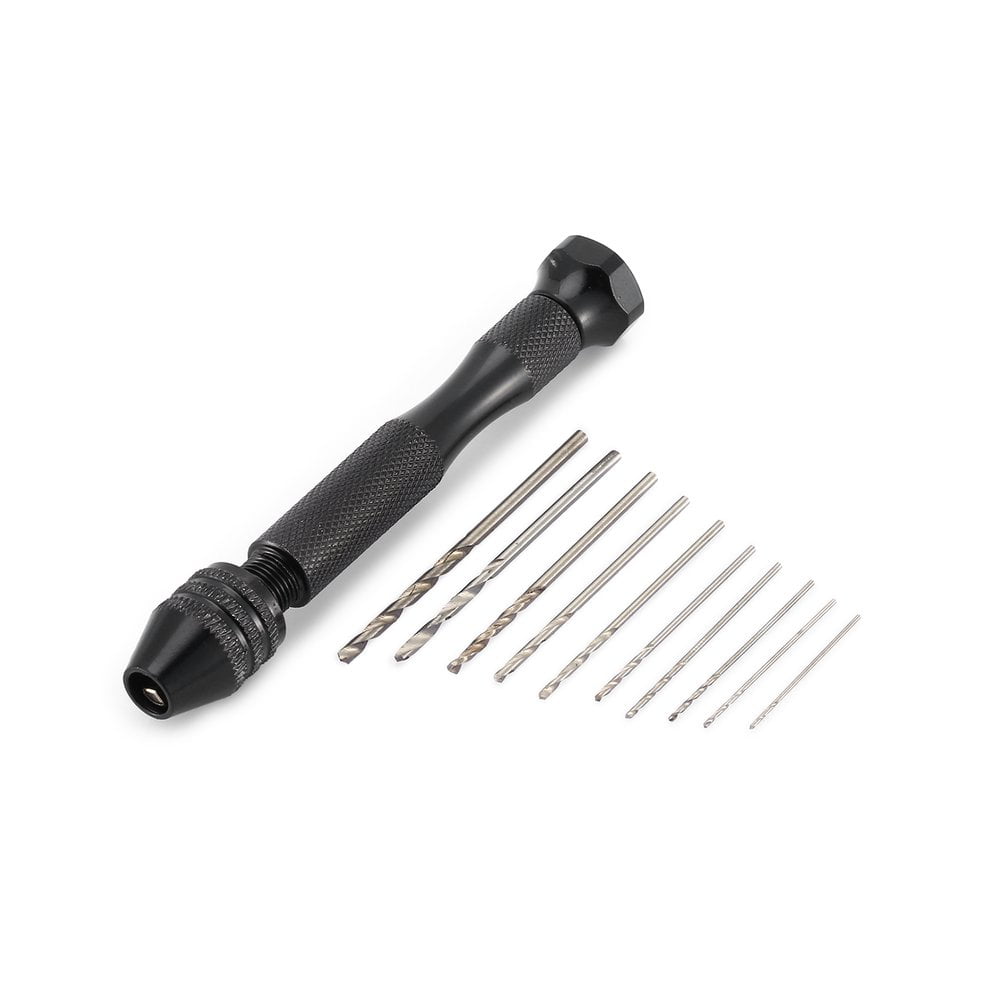

A pin vise, also called a pin vice, is a small type of hand drill used in hobbies such as model building and jewelry making. The pin vise features an adjustable chuck which holds drill bits, wire or pins. This chuck is the reason for the word "vise" in the name.
Full Answer
What is a pin vise?
Lesley is also a professional museum model maker. A pin vise (or pin vice in the UK) is a miniature drill or twist drill that is a useful, fairly inexpensive specialized hand tool used a lot in miniature woodwork. Pin vises, as the name suggest, hold thin, long cylindrical objects (like a pin or wire) by one end.
How many drill bits are in a pin vise?
Usually, a Pin Vise comes with 2 two-sided collets. One collet is in the front of the drill as it is in use, the other is stored in the handle until you need it. Each has 2 fixed diameter holes for a total of 4 different sizes. Each hole will hold a small range of different sized drill bits.
What is a drill vise?
This vise comes in the form of a long pen-like handle with an adjustable throat or collet (the vise part). Think of a pen that has an adjustable ring or collar on top that can be tightened or loosened to fit very small manual drill bits at one end.
What is the difference between Mini and pin vices?
Mini drills: These are pin vises without revolving heads that are more difficult to use one-handed, but two-handed, you can get better control over the straightness of the drill for use with smaller bits. Simple mini drill styles of pin vices often have a single collet fitting the mid-range of drill bits, which can be stored inside the handle.
What are pin vises for?
Pin vises are tool holding devices that allow small tools to be held in place with positive acting jaws (think mini-chuck). These pin vises are available a few collet, handle, end and length varieties.
How do you use a PIN vice hand drill?
0:191:33How to Use a Pin Vise - YouTubeYouTubeStart of suggested clipEnd of suggested clipNow hold the pin vise right in the palm of your hand grip the pin vise and begin to twist andMoreNow hold the pin vise right in the palm of your hand grip the pin vise and begin to twist and remember whenever you're working with wire. Always make sure that you wear your safety goggles.
What is the name of the pin vice?
A pin vise, also called a pin vice, is a small type of hand drill used in hobbies such as model building and jewelry making. A pin vise, also called a pin vice, is a small type of hand drill used in hobbies such as model building and jewelry making.
How do you use a model drill?
3:038:34Tutorial: Pin vice drill use - YouTubeYouTubeStart of suggested clipEnd of suggested clipGoing perpendicular to the drilled surface as this way it's easier to have the wire follow aMoreGoing perpendicular to the drilled surface as this way it's easier to have the wire follow a straight path.
How do you drill a hole in a pin vise?
1:304:28Mini Pin Vise Hand Drill - YouTubeYouTubeStart of suggested clipEnd of suggested clipPut a little weight on it. So it could just screw in fast and it is going through so right now i'mMorePut a little weight on it. So it could just screw in fast and it is going through so right now i'm gonna see how thick it could go i'm gonna bring it back.
How do I make a pin vice?
1:1314:30Make a simple pin vice for the workshop - YouTubeYouTubeStart of suggested clipEnd of suggested clipSmall Jacob's Chuck and Morse to taper leads to using the sleeve just line and the draw there so IMoreSmall Jacob's Chuck and Morse to taper leads to using the sleeve just line and the draw there so I thought well I'm oval to take the cheque off an old make up am a pin vise with that.
How do you use a mini drill?
0:352:18How To Use The Micro Hand Drill by Micro-Mark - YouTubeYouTubeStart of suggested clipEnd of suggested clipItself has a spiral in it and as you run the tool up and down it rotates the head of the collet nutMoreItself has a spiral in it and as you run the tool up and down it rotates the head of the collet nut in collet spinning your bit. And you'll get about one and a quarter one and a half revolutions.
How do you use a jewelry drill?
2:533:55Basic Drilling Techniques for Metal Jewelry - YouTubeYouTubeStart of suggested clipEnd of suggested clipYou'll break the drill bit and it can end up in your eye. So be careful. Okay you just want toMoreYou'll break the drill bit and it can end up in your eye. So be careful. Okay you just want to Center your drill bit over the Chuck. Give your drill a little bit of gas.
How do you drill a miniature?
1:5113:09How-to: Bore drilling practice without risking your miniatures. - YouTubeYouTubeStart of suggested clipEnd of suggested clipIt's easy to slip when your saw starting a whole lot unless you have a guide hole to just pull theMoreIt's easy to slip when your saw starting a whole lot unless you have a guide hole to just pull the drill bit in that's the first tool. The second tool we've got two pin visors.
What is a hobby drill?
More info. Hobby Hand Drill is similar to a pen and will allow you to perform precision perforations in confined spaces when building models and miniatures. It is made of aluminium and it is coming with a Swivel Head with freewheeling head especially good for hand drilling and tapping.
What does a twist drill bit do?
Twist drill bits are used for drilling through anything from wood to plastic to metal products, but not masonry and concrete products. However, their primary use is for drilling through metal.
How do you use an army painter drill?
How to use:Unscrew the head of the Miniature and Model Drill.Open the back of the Miniature and Model Drill.Find the tip that matches the drill bit you need.Store the remaining tips inside the drill and close the back.Mount the tip i and insert the drill bit.Screw the head back on and you are ready to go.
How do you use a pin vise to twist wire?
1:422:40How to Use a Pin Vise to Twist Wire - YouTubeYouTubeStart of suggested clipEnd of suggested clipWhat you're going to do is put the end of your wire in not too much enough to hold it but maybe aMoreWhat you're going to do is put the end of your wire in not too much enough to hold it but maybe a quarter of an inch or less and tighten up your pin vise.
How do you use a jewelry drill?
2:533:55Basic Drilling Techniques for Metal Jewelry - YouTubeYouTubeStart of suggested clipEnd of suggested clipYou'll break the drill bit and it can end up in your eye. So be careful. Okay you just want toMoreYou'll break the drill bit and it can end up in your eye. So be careful. Okay you just want to Center your drill bit over the Chuck. Give your drill a little bit of gas.
How do you use a mini drill?
0:352:18How To Use The Micro Hand Drill by Micro-Mark - YouTubeYouTubeStart of suggested clipEnd of suggested clipItself has a spiral in it and as you run the tool up and down it rotates the head of the collet nutMoreItself has a spiral in it and as you run the tool up and down it rotates the head of the collet nut in collet spinning your bit. And you'll get about one and a quarter one and a half revolutions.
How do you use a mini drill bit?
0:243:30How to use MICRO drill bits in a standard drill chuck - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo you can use your drill to use micro drill bits let me show you so here we got a drill bit oneMoreSo you can use your drill to use micro drill bits let me show you so here we got a drill bit one size under 16 this is about 360 force or 1.3 millimeters.
What is a pin vise used for?
In addition to model builders, jewelry makers also make use of pin vises. In jewelry making, the pin vise is used to twist wire. The jewelry maker inserts one end of the wire into the vise and tightens the chuck until the vise grips the wire tightly. The jeweller then grasps the other end of the wire in a pair of pliers and begins to tighten the vise more and more. The wire will begin to twist as the chuck turns it.
Is a pin vise a drill?
The increasing affordability of rotary tools and electric hand drills in the late 1990s and early 20th century led some model builders to abandon the pin vise as a drill. Despite the competition, pin vises have a number of advantages over electric drills. They are extremely compact and can be tucked into a pocket when not in use. They are also inexpensive and capable of very precise work, which can be difficult with electric drills.
What is a pin vise?
A Pin Vise is a relatively inexpensive piece of your hobby kit, but there are certainly some benefits to splashing out that extra cash. If you are a Warhammer collector and want all the tools to match. there’s nothing wrong with their set. If you are looking at a more budget-friendly option I’d suggest either The Army Painter or Modelcraft versions which come with drill bits. The cheapest option is a generic Amazon or eBay model and these are absolutely fine for doing the job. I just found some annoyance with them like how squeaky the handle was as it spins.
What size drill bit does a pin vise hold?
The best part of these, however, is that the shank (the bit your drill holds) is a standard size. so long as you get a Pin Vise which holds 3.2mm drill bits, which is the standard shank diameter for PCB Drill Bits. Not all Pin Vises hold this diameter however so I will note the ones below which do.
What is a collet in a pin vise?
Collets are like a traditional chuck except the are a fixed size. Usually, a Pin Vise comes with 2 two-sided collets. One collet is in the front of the drill as it is in use, the other is stored in the handle until you need it. Each has 2 fixed diameter holes for a total of 4 different sizes.
What is a chuck on a drill?
The Chuck is the part you tighten to grip your drill bits, You can get get a hand drill with a more traditional chuck like you see on normal drills which is entirely variable in size. More commonly, you will see a Hobby drill has reversible Collet (s) Collets are like a traditional chuck except the are a fixed size.
What tool do you use to drill holes in miniatures?
Dremel / Rotary Tool. Let’s get this out of the wat straight off the bat, you can use a Dremel or any rotary tool. They are absolutely great for a myriad of tasks, but they are overkill for drilling holes in miniatures. Unless you are incredibly precise, you are likely to slip and worse drill a hole in your hand.
What drill bit do you use for space gun barrels?
The most common thing we all drill (Space Marine Gun Barrels) it makes sense to drill the side holes with one diameter drill bit and the front of the barrels with a slightly larger drill bit. It’s a subtle change, but one that makes it appear just slightly more real.
What is the handle on a hand drill?
The handle is the part which rests in your palm and allows you to hold the PinVise steady as you spin the rest to drill a hole. not all hand drills come with this but I find it to be the most necessary component. The body/shaft/chuck sleeve of a hobby drill or whatever you want to call it is the main body of the drill.
